Slab Flex System

GET A QUOTE

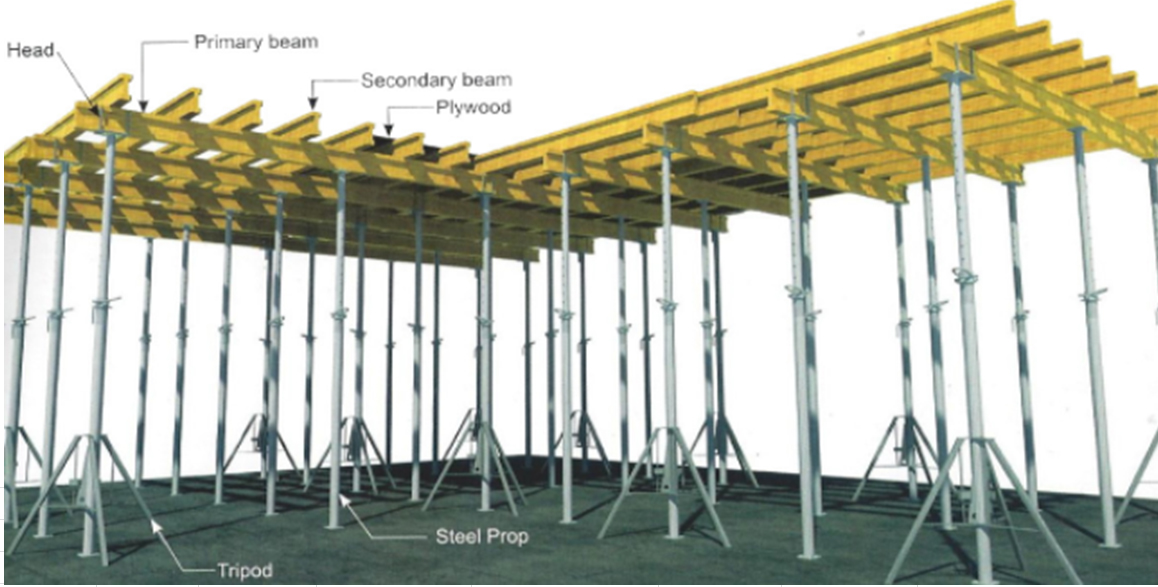

SLABFLEX is highly versatile with its capability to be designed for every floor plan and slab thickness. The system consists of very few items; HT 20 Timber Beams, Props, Forkheads and Tripods. Timber Beams are 5 kg per linear meter which considered light, easy to handle and capable for extensive spans.

Galvanised Props according to European standards EN1065 are available for various heights (3m, 4m and 5m) with minimum load bearing capacities 2 ton for highest extension sizes.
The Forkheads provides the continuously variable adaptability, while safely holding one or two HT 20 timber beams in place.

Since the Tripods support the formwork system to be self standing during set‐up and stripping, it reduce the labor required during erection and dismantling.

Galvanised Euro-Prop According to EN 1065

Euro-prop 300
1800–3000 mm extendible

Euro-prop 400
2300–4000 mm extendible

Euro-prop 550
3000–5500 mm extendible

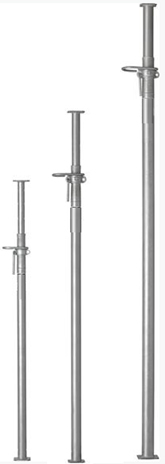

Props Different Lengths

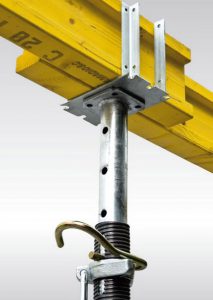

Cross Head

H20 Timber Beam lengths are 1.45, 1.9, 2.9, 3.6, 3.9, 4.9, 5.9m.

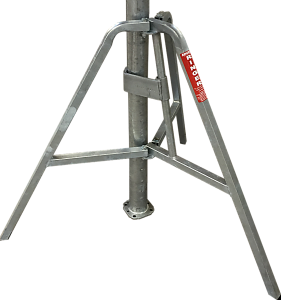

Tripod

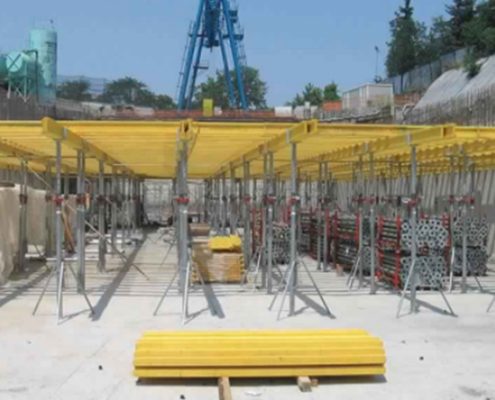

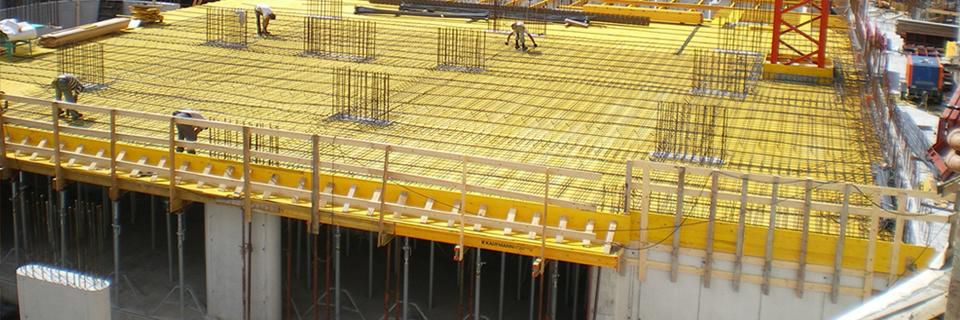

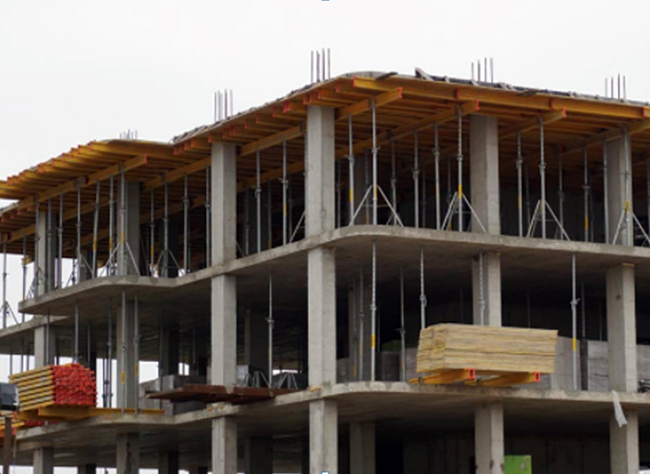

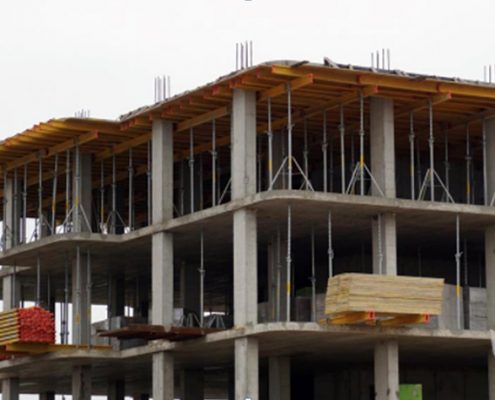

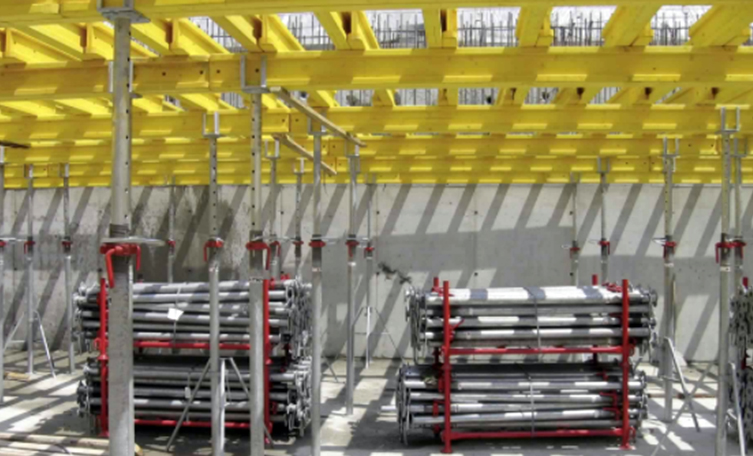

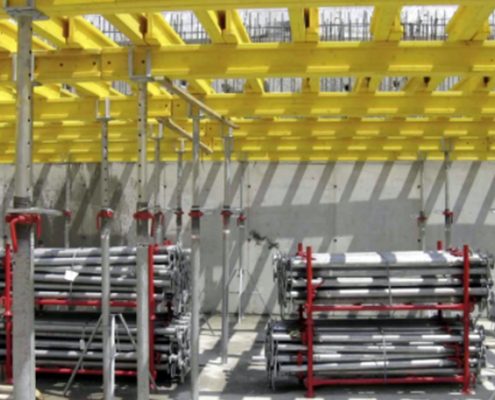

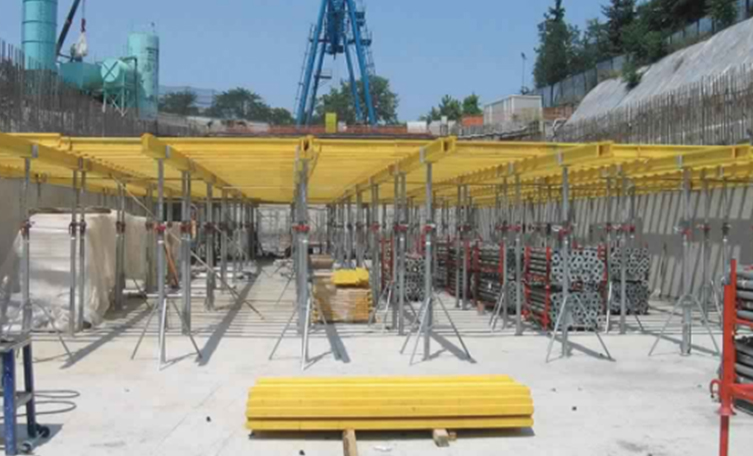

Photos from Different Projects:
